551G Gear Drive Camshaft Kit

S&S CYCLE 551G Gear Drive Camshaft Kit

S&S CYCLE
0925-0742
330-0100
The 551G Gear Drive Camshaft Kit is designed for 96 to 106 CID engines with 9:1 to 9:9 compression. It enhances power and torque across the RPM range, requiring professional installation and certain adjustments.
Hurry! only 1 items left in stock.
€723.14
In stock, ships within 24-48 hours.
Quantity

Add to Compare
Add to Wishlist
  Delivery policy

In stock items will be shipped within 1-3 days.

  Return policy

You can return the products within 14 days for a full refund, check our returns policy.

Product Description

Designed for engines with 96 to 106 CID and compression ratios between 9:1 to 9:9, the 551G Gear Drive Camshaft Kit is a bolt-in cam set tailored for stock or mildly modified touring bikes. This kit reverses the rear cam's direction of rotation, allowing for increased operational clearance between cam lobes, which enables higher cam lifts.

Experience enhanced power across the entire RPM range, with a focus on improved low and midrange torque, particularly strong from 1,000 to 4,000 RPM. This camshaft kit increases valve timing accuracy by eliminating timing chain lash and the loosely fitting stock chain.

Installation requires the removal of material from the inner surface of the stock gear cover and necessitates the use of a hydraulic press along with other professional-grade tools. It's important to replace cam bearings and gaskets when installing new cams.

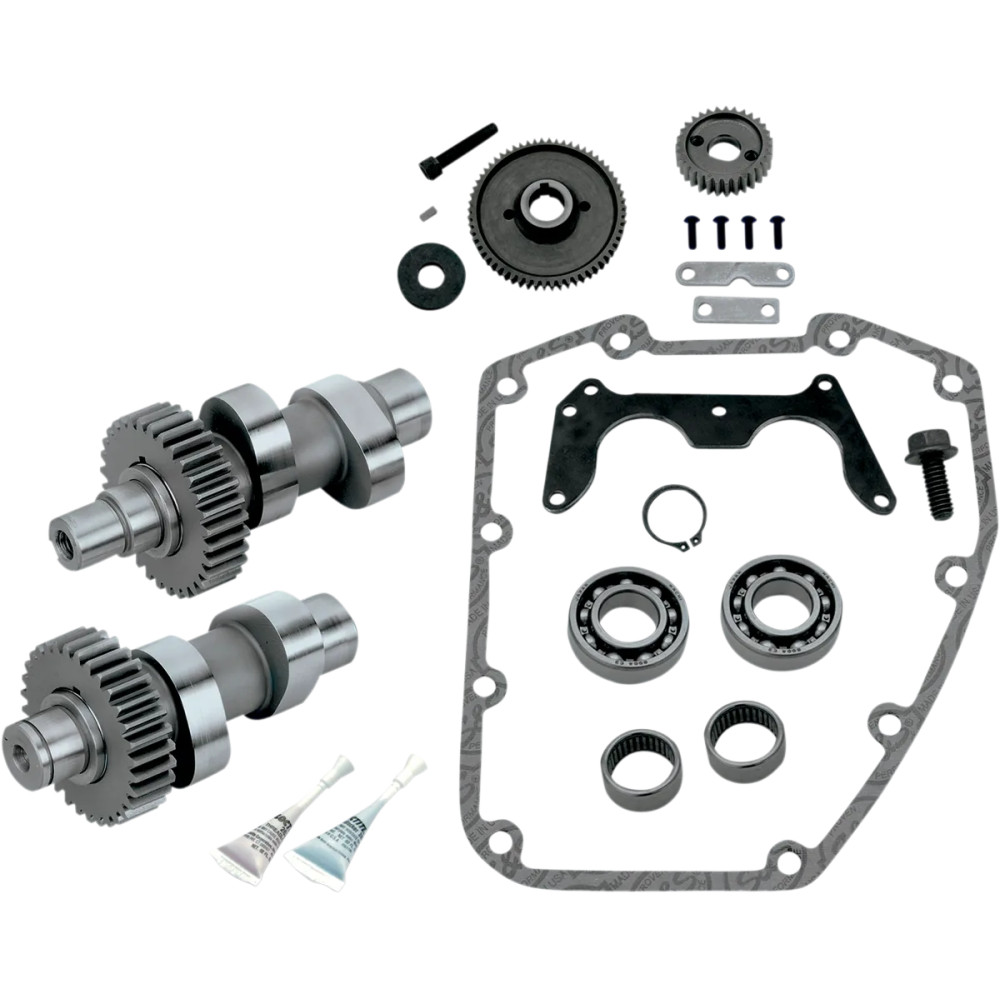

S&S recommends using an adjustable pushrod/cover kit for optimal performance. Please note that this kit is not recommended for compression ratios of 10:1 or greater. The kit includes inner gears, outer gears, inner and outer bearings, gaskets, and detailed instructions. Made in the USA, this product requires the installer to check coil bind, valve to valve clearance, and valve to piston clearance.

Due to the inherent characteristics of gear drives, users may experience increased valve train noise.

: 0925-0742
: 1 Item
In Stock

Data sheet

Riding Style
Street
Type
Gear
Units
Kit
Application
Exhaust
Intake
Intake Lobe Centerline Imperial
91°
Exhaust Duration Imperial
238°
Intake Duration Imperial
216°
Exhaust Lobe Centerline Imperial
102°
Exhaust Lift Imperial
0.550"
Exhaust Open Imperial
41°
Exhaust Lift at TDC Imperial
0.170"
Intake Lift at TDC Imperial
0.178"
Intake Open Imperial
17°
Exhaust Close Imperial
17°
Grind
551 Series
Intake Close Imperial
19°
Intake Lift Imperial
0.550"
