Replacement Piston Rings — 3.000 in bore

HASTINGS Replacement Piston Rings — 3.000 in bore – 86-03 Sportster

HASTINGS
DS-750850
WG1010327|2M6198

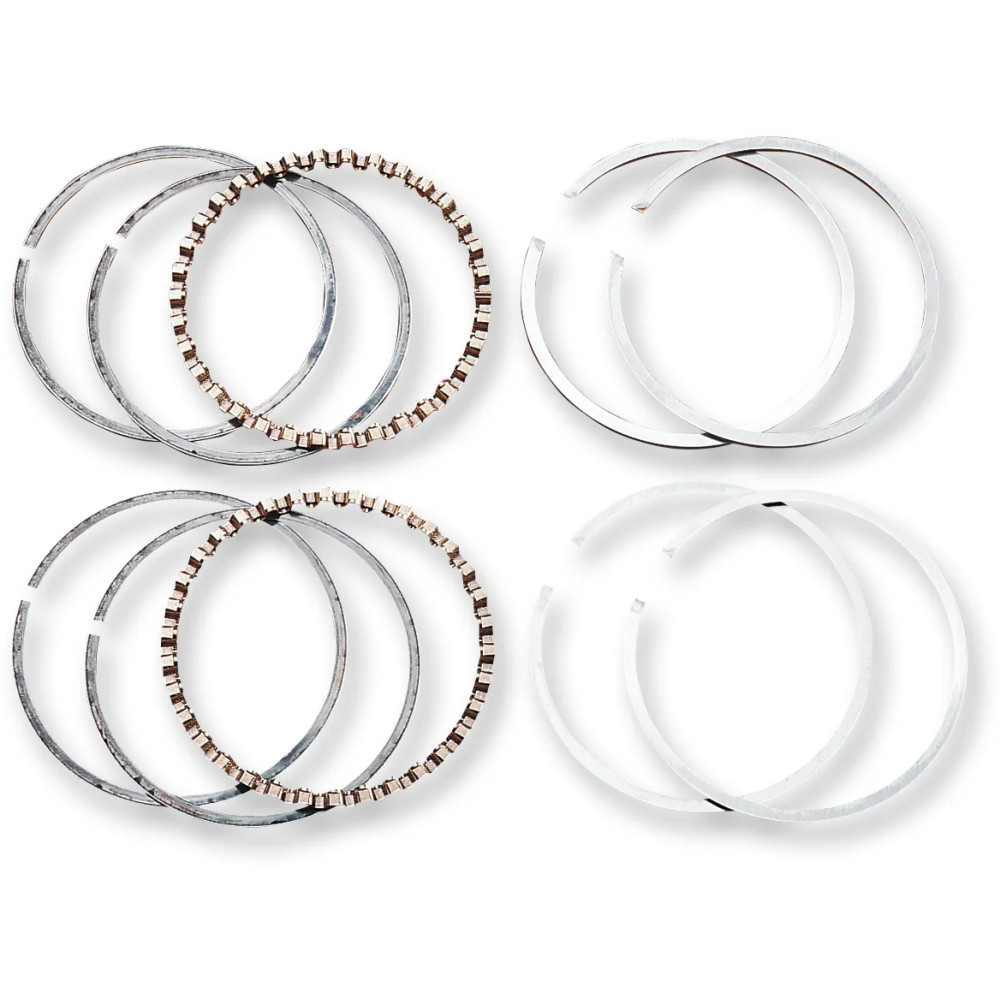

  • Complete set for two pistons: top, second, and oil control rings.
  • Barrel face top rings and Napier second rings with reverse twist for improved sealing.
  • Three-piece Flex Vent oil rings with four steel rails and two expanders for positive oil control.
  • Made in the USA.
Hurry! only 20 items left in stock.
€17.38
€21.85
Save €4.47
local_shipping In stock, ships in 2-3 days
Quantity

  Delivery policy

In stock items will be shipped within 1-3 days.

  Return policy

You can return the products within 14 days for a full refund, check our returns policy.

Includes top compression rings, second compression rings, and oil control rings for complete piston sealing. ⚙️

Top compression rings feature a barrel face to improve ring-to-wall contact and support heat transfer between the piston and cylinder.

Second compression rings are Napier style; a reverse twist with a taper-machined face duplicates the outside-diameter bottom-side scraping edge of a positive twist torsional ring.

Oil control rings use a three-piece flex vent design and provide uniform pressure through four steel rails and two expanders for positive oil control.

The three-piece design allows rails with a small cross-sectional area for better conformability to the bore, promoting improved oil economy.

Promotes side sealing to help prevent oil from being forced under and behind the ring, reducing consumption.

Includes enough rings for two pistons, with two rings per groove except where rails use two rails per one expander.

Made in the USA.

: DS-750850
: 20 Items
In Stock

Data sheet

Units
Set
Style
Replacement
Brand
HASTINGS
Bore - Oversize
Standard
Bore Size
3,000"
Ring Material
Moly Coated

Shipping Policy

Shipping Areas:

We ship to:

  • Spain (Peninsula and Balearic Islands)
  • European Union countries

We do not ship to the Canary Islands, Ceuta, or Melilla.

Shipping Times:

  • Spain (Peninsula): 2–4 business days
  • Balearic Islands: 3–5 business days
  • EU countries: 3–7 business days depending on destination

Shipping Costs:

Shipping costs are calculated automatically at checkout based on destination and weight.

Free shipping may be offered for qualifying orders, as specified on our website.

Order Processing:

Orders are processed within 1–2 business days after payment confirmation. Orders placed on weekends or public holidays are processed the next business day.

Delivery Issues:

If your order is delayed or arrives damaged, you must notify us within 14 calendar days. We will investigate the issue and offer a resolution in accordance with applicable consumer protection laws.

Return & Withdrawal Policy

Right of Withdrawal:

In accordance with Royal Legislative Decree 1/2007 (Ley de Defensa de los Consumidores y Usuarios), you have the right to withdraw from your purchase within 14 calendar days from the date of receipt, without giving any reason.

To exercise this right, contact us via email or through our website, providing your order number and contact details.

Return Conditions:

  • Products must be unused, in original condition and packaging.
  • Return shipping costs are the responsibility of the customer, unless the product is defective or sent in error.
  • Refunds will be issued within 14 days of receiving the returned goods.

Items Excluded from Return:

  • Custom or personalized products
  • Sealed items that were unsealed after delivery and are unsuitable for return due to hygiene (e.g. cosmetics, personal care)
  • Digital content delivered electronically once download or streaming has begun

If you want to return an item, please contact us first to give you detailed instructions.

This product fits the following vehicles. Use the filters below to narrow down the list if needed.

Manufacturer Model Family Year Notes
Harley Davidson Sportster 53 Custom Sportster 1999
Harley Davidson Sportster 53 Custom Sportster 2000
Harley Davidson Sportster 53 Custom Sportster 2001
Harley Davidson Sportster 53 Custom Sportster 2002
Harley Davidson Sportster 53 Custom Sportster 2003
Harley Davidson Roadster Sportster 2002
Harley Davidson Roadster Sportster 2003
Harley Davidson Sportster Sportster 1986
Harley Davidson Sportster Sportster 1987
Harley Davidson Sportster Hugger Sportster 1988
Harley Davidson Sportster Hugger Sportster 1989
Harley Davidson Sportster Deluxe Sportster 1990
Harley Davidson Sportster Sportster 1991
Harley Davidson Sportster Sportster 1992
Harley Davidson Sportster Hugger Sportster 1993
Harley Davidson Sportster Deluxe Sportster 1994
Harley Davidson Sportster Deluxe Sportster 1995
Harley Davidson Sportster Hugger Sportster 1996
Harley Davidson Sportster Sportster 1997
Harley Davidson Sportster Sportster 1998
Harley Davidson Sportster Sportster 1999
Harley Davidson Sportster Sportster 2000
Harley Davidson Sportster Sportster 2001
Harley Davidson Sportster Sportster 2002
Harley Davidson Sportster Sportster 2003
