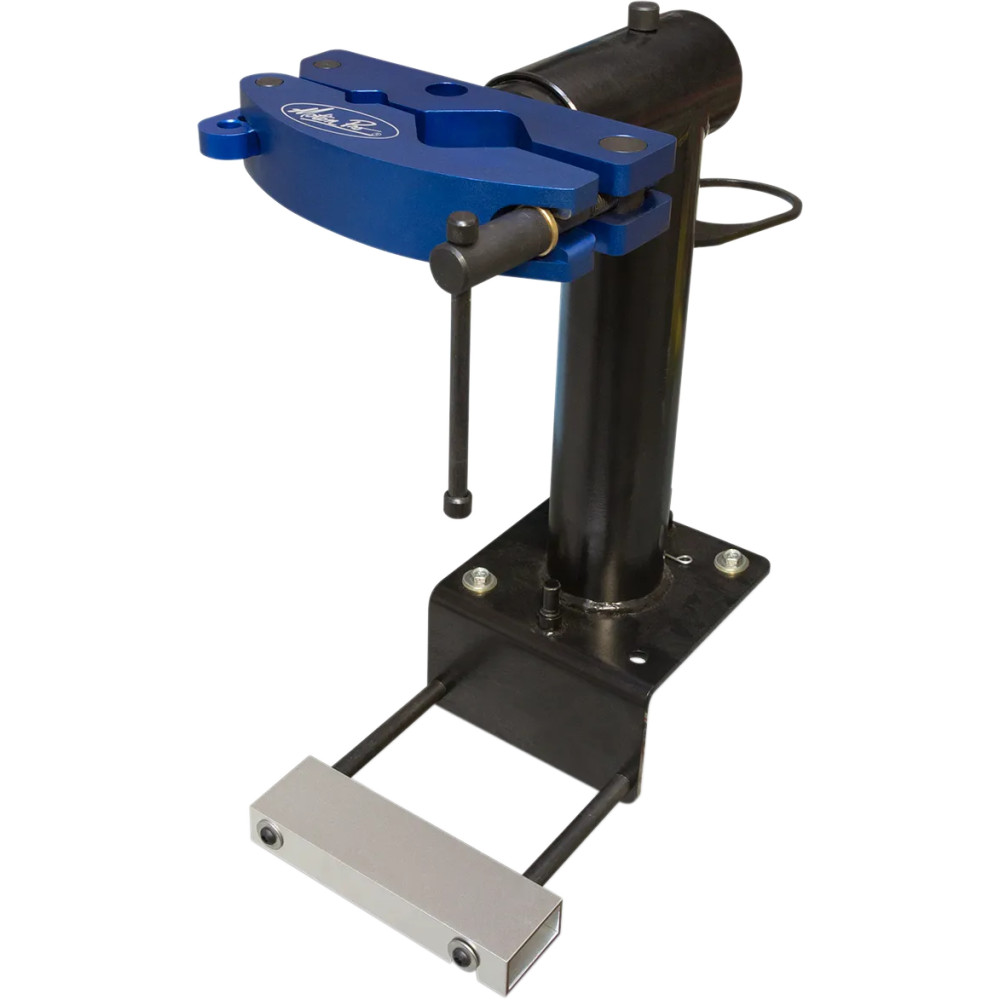

Pivot Suspension Vise — Black, Blue

MOTION PRO Pivot Suspension Vise — Black, Blue

MOTION PRO
3805-0148
08-0628
Clamp that secures forks and shocks for oil changes, re-valving, and seal work. Rotating head, adjustable jaws, and a movable fluid pan streamline service.
Hurry! only 10 items left in stock.
€394.63
€534.26
Save €139.63
local_shipping In stock, ships in 20-25 days
Quantity

  Delivery policy

In stock items will be shipped within 1-3 days.

  Return policy

You can return the products within 14 days for a full refund, check our returns policy.

Overview 🛠️🔧
This tool clamps and secures forks and shocks to make service fast, safe, and precise. It was engineered to simplify oil changes, seal replacement, and re-valving by holding cylindrical components firmly and allowing repeatable measurements.

  • Repositionable bottom slide bar holds forks compressed while bleeding air (priming cartridge) during reassembly and provides a stable platform for adding, adjusting, and measuring fork oil levels.
  • Compact, rigid frame with four pre-drilled holes in the base for secure bench mounting.
  • Assists removal of piston rod and seal head, and removal of shock reservoir caps, chamber pistons, or bladders.
  • Can help remove fork compression valve assemblies when the stock front axle is used for support.
  • Large side accepts 40 mm to 61 mm diameter parts; small side accepts 16 mm to 34 mm diameter parts.
  • Soft-jaw clamp secures cylindrically shaped parts using a four-point grip for damage-free holding.
  • Soft jaw peg supports the fork slider for dust seal and seal-retaining-clip removal.
  • Holds shocks and forks securely while you change oil, re-valve, or replace seals.
  • Rotating head supports parts in any orientation with mechanical stops every 45° for consistent positioning.
  • Movable fluid catch pan with mesh insert and threaded drain bung for clean containment of oil and fluids.
  • Designed to make suspension service simple and quick — a practical bench tool for routine and advanced maintenance.

🛢️⚙️ Use this clamp to speed up routine service and reduce the risk of damage when working on front-end components. It provides stable support for accurate oil-level checks and safe disassembly of sealed elements.

: 3805-0148
: 10 Items
In Stock

Data sheet

Type
Suspension
Units
Each
Color/Finish
Black, Blue
Style
Pivot
Brand
MOTION PRO
Material
Aluminum, Steel
