570G Camshaft Kit

S&S CYCLE 570G Camshaft Kit

S&S CYCLE
2007-2570
33-5178
The 570G Camshaft Kit is designed for 88" to 103" CID engines, improving performance and valve timing accuracy. It includes essential components for installation and is made in the USA.
Out of Stock
€802.22
This product is currently unavailable.
  Delivery policy

In stock items will be shipped within 1-3 days.

  Return policy

You can return the products within 14 days for a full refund, check our returns policy.

570G Camshaft Kit

The 570G Camshaft Kit is engineered specifically for 88" to 103" CID engines, optimized for compression ratios between 9:1 and 10:1. This kit excels in performance with the strongest output between 3200-3700 rpm, ensuring a powerful ride.

Enhance your engine's efficiency with improved valve timing accuracy that eliminates timing chain lash and the issues associated with a loosely fit stock chain drive. The innovative design reverses the rear cam's direction of rotation, which provides additional operating clearance between cam lobes, resulting in higher cam lifts.

Installation requires professional tools, including a hydraulic press, and some material must be removed from the inner surface of the stock gear cover. S&S recommends using an adjustable pushrod/cover kit for optimal performance. Please note that cam bearings and gaskets must be replaced when installing new cams.

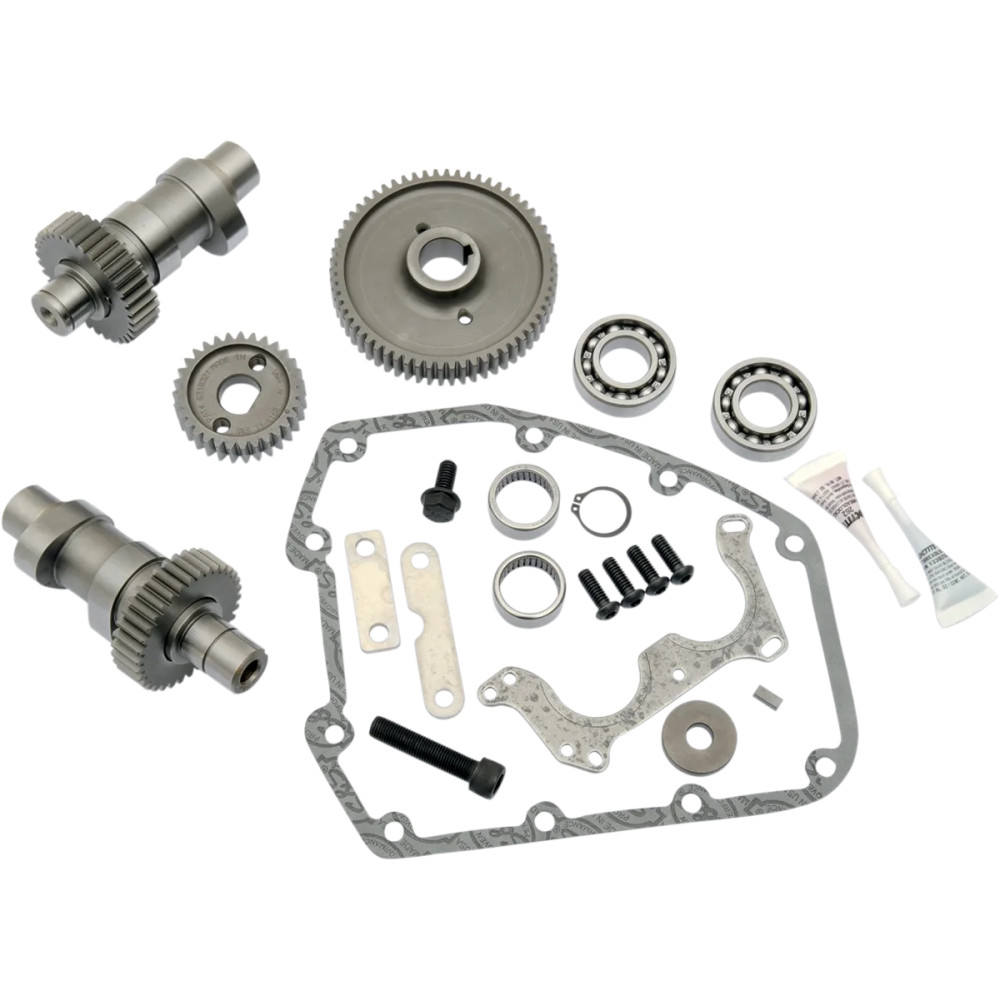

This comprehensive kit includes camshafts, a gear cover gasket, bearings, an oil passage block-off kit, a retaining ring, o-ring, and both inner and outer gears. Proudly made in the USA, this product may result in increased valve train noise due to the characteristics of gear drives. It is essential for installers to check coil bind, valve to valve clearance, and valve to piston clearance during installation.

: 2007-2570
Out of Stock

Data sheet

Riding Style
Street
Type
Gear
Units
Kit
Application
Exhaust
Intake
Intake Lobe Centerline Imperial
100°
Exhaust Duration Imperial
255°
Intake Duration Imperial
240°
Exhaust Lobe Centerline Imperial
107.5°
Exhaust Lift Imperial
0.570"
Exhaust Open Imperial
55°
Exhaust Lift at TDC Imperial
0.179"
Intake Lift at TDC Imperial
0.187"
Intake Open Imperial
20°
Exhaust Close Imperial
20°
Grind
570 Series
Intake Close Imperial
40°
Intake Lift Imperial
0.570"
