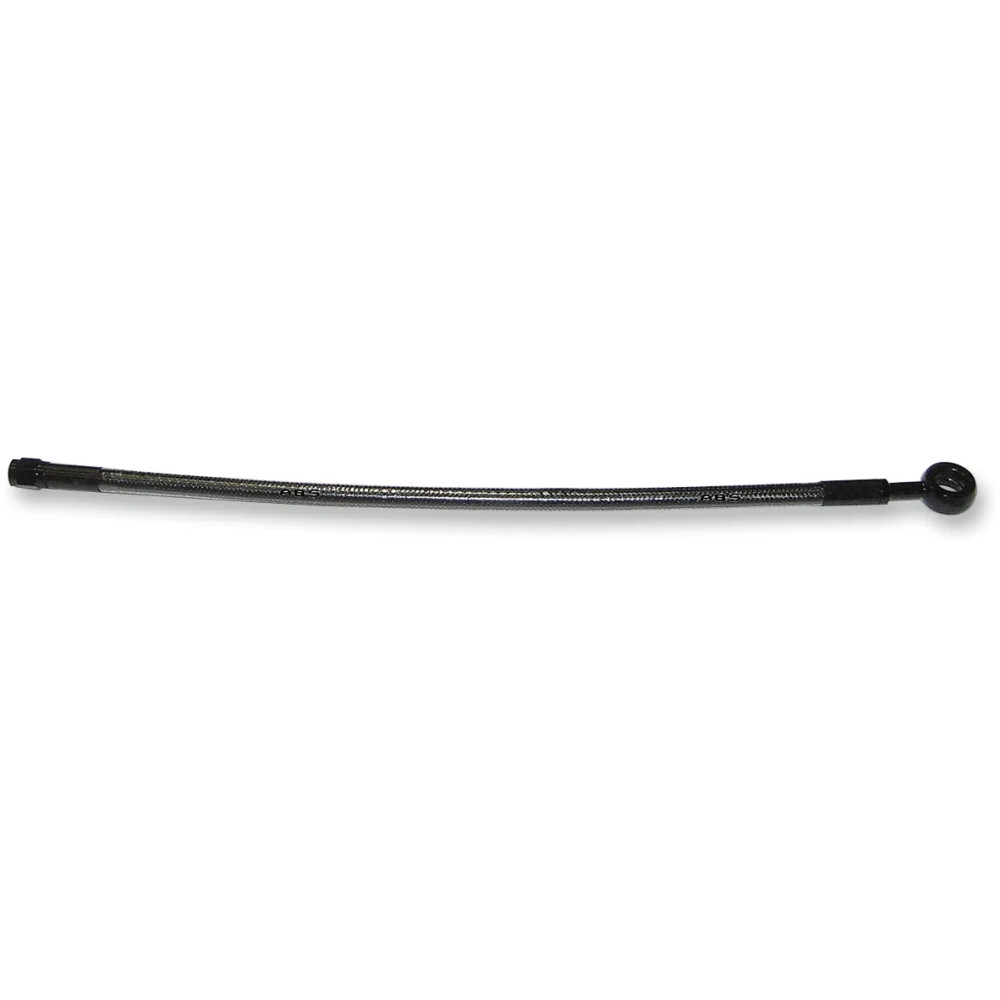

Alternate Length Designer Series ABS-Specific Front Brake Line Kit — 28", 7/16" 90° banjo

MAGNUM SHIELDING Alternate Length Designer Series ABS-Specific Front Brake Line Kit — 28", 7/16" 90° banjo – 12-14 FLD, 11-14 Softail, 12-14 Dyna

MAGNUM SHIELDING
1741-3692
AS47328
Designer Series ABS-specific front brake line kit engineered for low expansion, OEM routing compatibility and reliable ABS performance. Upper, lower and mid-line components and adapters sold separately.
Out of Stock
€65.55
€82.98
Save €17.43
This product is currently unavailable.
  Delivery policy

In stock items will be shipped within 1-3 days.

  Return policy

You can return the products within 14 days for a full refund, check our returns policy.

This Designer Series ABS-specific front brake line kit delivers reliable, low-expansion hydraulic performance while following OEM routing for stock and alternate length applications. 🔧 The kit is engineered for motorcycles equipped with ABS; using ABS-specific lines helps preserve anti-lock braking functions.

Features include PTFE inner tubing, aramid fiber reinforcement, premium braided shielding and a protective outer jacket to resist abrasion and maintain appearance. The lower assembly is a direct-fit component designed to be used with alternative length upper lines. Upper, lower and mid-line assemblies and adapters are sold separately to ensure correct fitment.

  • Designed to follow OEM routing for straightforward installation.
  • Direct-fit lower assembly works with alternate length upper lines.
  • Durable construction reduces line expansion and resists scuffing.
  • Assembled in the U.S.A. 🇺🇸

Fitment notes: Single disc Dyna and Sportster models use two kits; many Softail applications require multiple kits and may require adapters depending on year and configuration. Touring and Trike models typically require a Designer mid-line and an upper line to complete routing from the master cylinder to the ABS controller. Non-stock applications require measurement of upper line length and banjo angle to ensure proper fit (see ordering instructions).

Warning: Harley-Davidson motorcycles equipped with ABS require ABS-specific upper and lower brake line kits. Failure to use ABS-compatible lines may compromise anti-lock braking performance. 🛡️

: 1741-3692
Out of Stock

Data sheet

Type
Alternate Length
Units
Each
Color/Finish
Black, Black Pearl
Brand
MAGNUM SHIELDING
For Braking System
with ABS
Length
71 cm (28")
Upper Banjo Fitting
7/16" 90° Banjo Fitting
Material
Stainless Steel
