High Load Beehive® Valve Springs

FEULING OIL PUMP CORP. High Load Beehive® Valve Springs

0926-1469
1201
High Load Beehive® Valve Springs are designed for high-performance engines, supporting up to 0.750" lift without rocker box clearance. This kit includes titanium retainers and is made in the USA.
Hurry! only 1 items left in stock.
€305.03
VAT included
In stock, ships within 24-48 hours.
Quantity

  Delivery policy

In stock items will be shipped within 1-3 days.

  Return policy

You can return the products within 14 days for a full refund, check our returns policy.

High Load Beehive® Valve Springs

Experience superior performance with our High Load Beehive® Valve Springs. Crafted from premium stress-relieved conical ovate wire, they feature a nitrided surface heat treatment, shot-peened surface enhancements, and a Nano Peen™ polish for unmatched durability.

  • Utilizes a lighter retainer, reducing valve weight for quicker revs and smoother motion.
  • Engineered to withstand the highest demands of performance engines with high-lift, steep-ramped camshafts.
  • Compatible with up to 0.750" lift cams; no rocker box clearing required.
  • Offers an extremely high level of fatigue life, ensuring long-lasting performance.
  • Dyno proven and track tested for reliability.

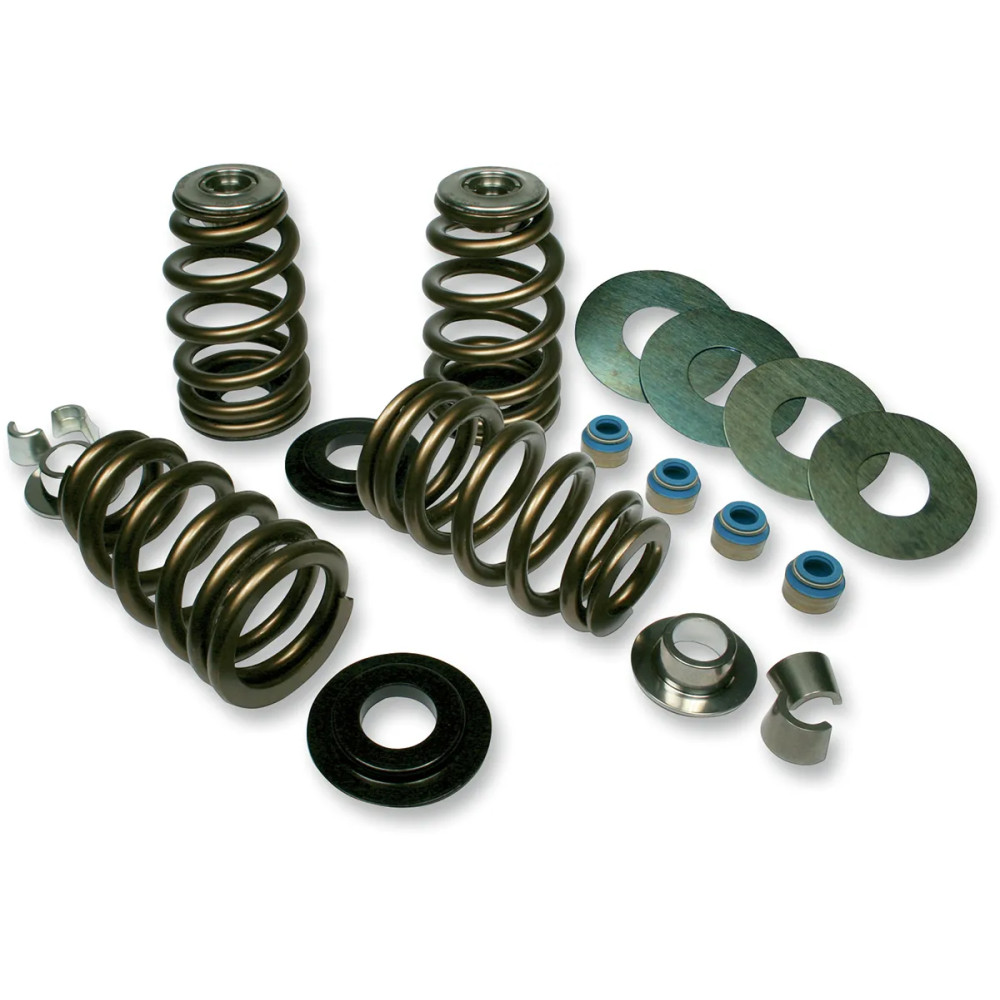

The kit includes:

  • High-Load BeeHive® valve springs
  • Lightweight 10° Titanium retainers made from Ti-17 alloy with micropolished finishes
  • Machined heat-treated chromoly spring seats
  • Seat shims, valve locks, and premium Viton® valve seals with a spring-loaded valve stem wiper system.

Made in the USA with specific seat lbs at installed heights:

  • 170 lb at 1.935" (0.720" lift)
  • 185 lb at 1.900" (0.685" lift)
  • 200 lb at 1.845" (0.630" lift)
  • 208 lb at 1.819" (0.604" lift)
  • 215 lb at 1.800" (0.585" lift)
  • 217 lb at 1.789" (0.574" lift)
  • 415 lb at 1.215" open height

Note: Valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec.

The Feuling® BeeHive® valve spring kit is a direct replacement with no machining or rocker box clearance required, supporting up to .574" lift for '84-'04 Big Twin and '86-'03 XL, and up to .700" lift for '05-'17 Twin Cam. Larger camshafts may require valve guide machining for seal-to-retainer clearance.

: 0926-1469
: 1 Item
In Stock

Data sheet

Riding Style
Street
Type
Valve
Units
Kit
Application
Exhaust
Intake
Spring Lift Imperial
0.750"
Spring Lift
0,750"
Stem Diameter Imperial
0.3125"
Collar Material
Titanium
