Race Series® Camchest Kit — 487 Reaper camshaft, 114" and 117" engines, chain drive

FEULING PARTS Race Series® Camchest Kit — 487 Reaper camshaft, 114" and 117" engines, chain drive – 17-25 Trike, 17-25 CVO, 17-26 Touring, 21-24 Pan America, 21-24 Sportster S

0925-1622
7273

Complete bolt‑in camchest kit with 487 Reaper® camshaft, lifters, one‑piece pushrods, high‑flow oil pump and billet camplate for improved mid‑to‑top end performance.

Hurry! only 4 items left in stock.
€1,596.50
€2,006.22
Save €409.72
local_shipping In stock, ships in 20-25 days
Quantity

  Delivery policy

In stock items will be shipped within 1-3 days.

  Return policy

You can return the products within 14 days for a full refund, check our returns policy.

Race Series® Camchest Kit delivers a complete camshaft package engineered for high performance and reliable bolt-in installation. ⚙️

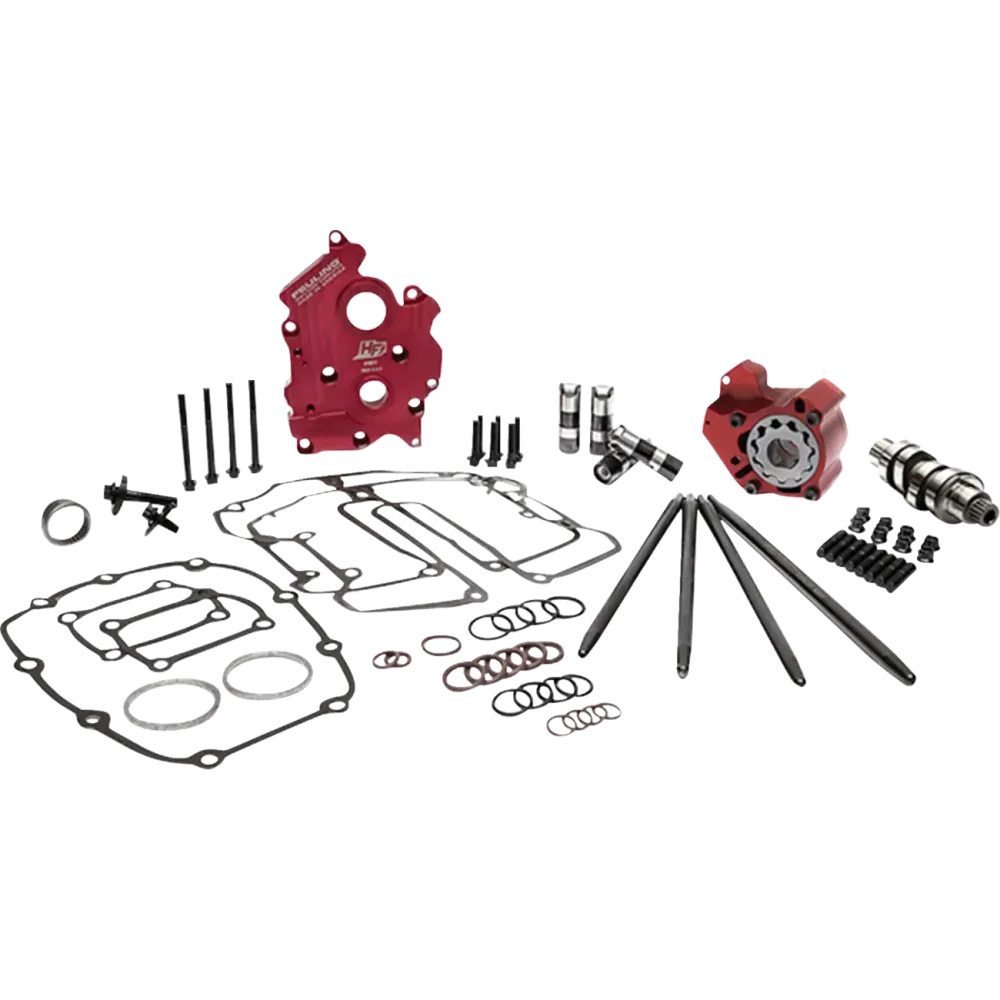

  • Includes 487 Reaper® chain drive camshaft, cam installation kit, Race Series® lifters, one piece pushrods, Race Series® oil pump, high flow camplate, and ARP rocker studs and nuts.
  • Cam installation kit contains cam bearing, cam/crank hardware and gasket/O-ring kit for a straightforward fit.
  • Race Series® hydraulic roller lifters feature standard OD (0.8420–0.8423) with .200" total travel and a slower bleed down rate to handle heavy valve springs.
  • One piece pushrods are heavy duty 7/16" tube with 0.165" wall thickness, precision concentricity, heat treated and finished in black oxide for durability.
  • Feuling Race Series® oil pump increases oil pressure and scavenge volume for cooler engine and oil temperatures, reduces wet sumping and blow by, and includes magnets to help protect gears and the pressure relief valve.
  • High flow camplate is billet 7075 aluminum, bolts into the stock location and is made in the USA.

Performance highlights: responds well to increased bore or compression, maintains bottom end power and pulls hard above 2,950 rpm compared to stock, with an effective rpm range of 2,250–6,100. Feuling testing reports rear wheel gains and a significant reduction in engine sump oil level. Feuling does not recommend tuning beyond stock emissions standards.

: 0925-1622
In Stock

Data sheet

Type
Chain Drive
Units
Kit
Brand
FEULING PARTS
Application
Water Cooled
Grind
487 Series
Exhaust Close
17,5°
Exhaust Duration
241,5°
Exhaust Lift
0,487"
Exhaust Lift at TDC
0,146"
Exhaust Lobe Centerline
103,25°
Exhaust Open
44°
Intake Close
37°
Intake Duration
237°
Intake Lift
0,478"
Intake Lift at TDC
0,180"
Intake Lobe Centerline
98,5°
Intake Open
20,5°
