585G Gear Drive Camshaft Kit

S&S CYCLE 585G Gear Drive Camshaft Kit

S&S CYCLE
2007-2585
33-5179
The 585G Gear Drive Camshaft Kit is engineered for 88/96/103/110 cubic-inch engines, enhancing valve timing accuracy and allowing for higher cam lifts. Installation requires professional tools and includes all necessary components.
Out of Stock
€802.22
This product is currently unavailable.
  Delivery policy

In stock items will be shipped within 1-3 days.

  Return policy

You can return the products within 14 days for a full refund, check our returns policy.

Product Description

The 585G Gear Drive Camshaft Kit is expertly designed for 88/96/103/110 cubic-inch engines with compression ratios ranging from 10.0:1 to 10.5:1. This innovative kit reverses the rear cam's direction of rotation, providing enhanced operating clearance between cam lobes, allowing for higher cam lifts.

It significantly improves valve timing accuracy by eliminating chain lash and the issues associated with loosely fit stock chain drives. Please note that material must be removed from the inner surface of the stock gear cover during installation.

This kit operates within a range of 3500-6000 rpm for 88" to 103" engines and 2500-5500 rpm for larger engines. A hydraulic press and other professional-level tools are required for installation.

S&S recommends the use of adjustable pushrod/cover sets for optimal performance. Additionally, cam bearings and gaskets must be replaced when installing new cams, and it is essential for the installer to check coil bind, valve-to-valve clearance, and valve-to-piston clearance.

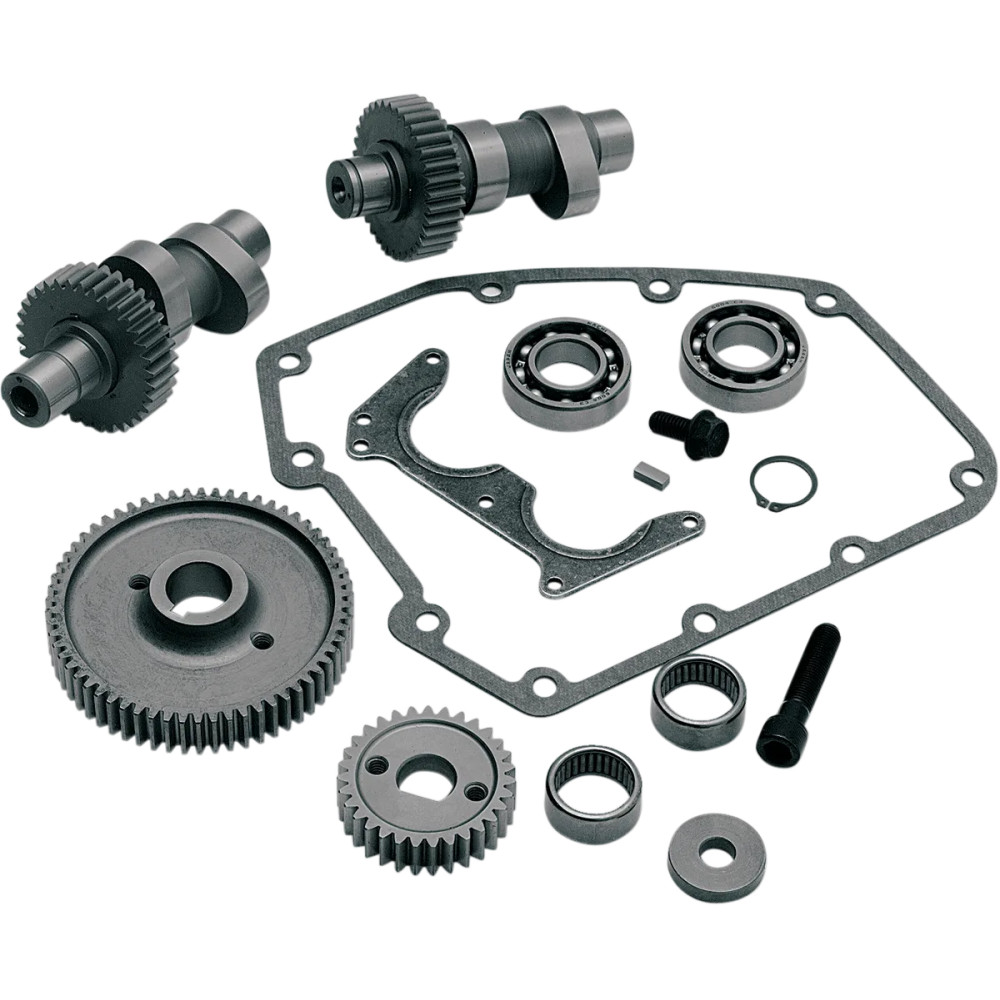

Due to the inherent characteristics of gear drives, users may experience increased valve train noise. This kit is made in the USA and includes camshafts, inner gears, outer gears, inner bearings, outer bearings, a gasket, and detailed instructions.

: 2007-2585
Out of Stock

Data sheet

Riding Style
Street
Type
Gear
Units
Kit
Application
Exhaust
Intake
Intake Lobe Centerline Imperial
102.5°
Exhaust Duration Imperial
260°
Intake Duration Imperial
245°
Exhaust Lobe Centerline Imperial
110°
Exhaust Lift Imperial
0.585"
Exhaust Open Imperial
60°
Exhaust Lift at TDC Imperial
0.179"
Intake Lift at TDC Imperial
0.186"
Intake Open Imperial
20°
Exhaust Close Imperial
20°
Grind
585 Series
Intake Close Imperial
45°
Intake Lift Imperial
0.585"
