583G Gear Drive Camshaft Kit

S&S CYCLE 583G Gear Drive Camshaft Kit

S&S CYCLE
0925-0744
330-0107
The 583G Gear Drive Camshaft Kit enhances performance in Harley-Davidson motorcycles by reversing cam rotation for improved clearance and valve timing accuracy, delivering strong torque and horsepower.
Out of Stock
€802.22
This product is currently unavailable.
  Delivery policy

In stock items will be shipped within 1-3 days.

  Return policy

You can return the products within 14 days for a full refund, check our returns policy.

583G Gear Drive Camshaft Kit

Enhance the performance of your Harley-Davidson motorcycle with the 583G Gear Drive Camshaft Kit. This advanced kit is designed to reverse the rear cam's direction of rotation, providing extra clearance between cam lobes for higher cam lifts. Experience improved valve timing accuracy by eliminating timing chain lash, ensuring a more precise operation.

Not only does this kit provide strong low-end torque and horsepower, but it performs best within the 1500-5000 rpm range, making it ideal for riders seeking power and responsiveness. Please note that installation requires material to be removed from the inner surface of the stock gear cover and necessitates the use of a hydraulic press and other professional tools.

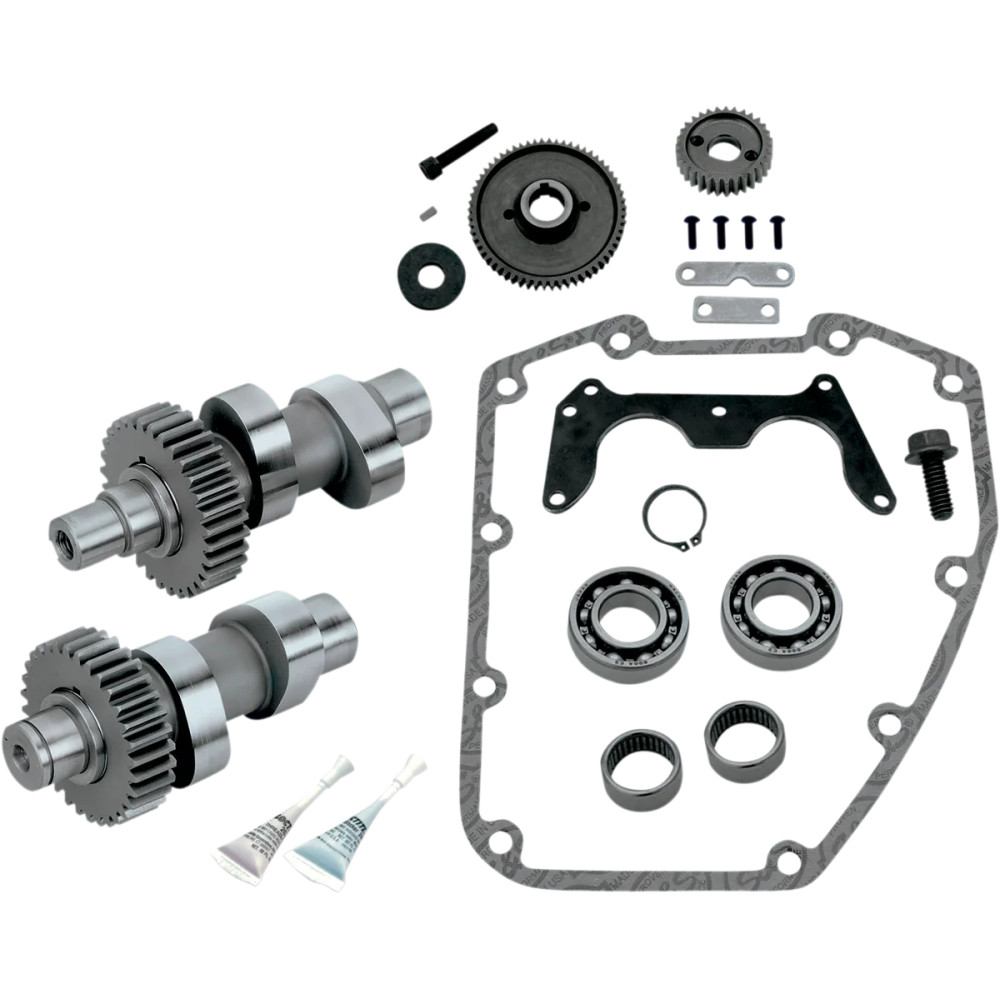

For optimal performance, it is recommended to replace cam bearings and gaskets during installation. S&S suggests using an adjustable pushrod/cover kit (sold separately) to maximize the benefits of this kit. The package includes camshafts, inner gears, outer drive gears, bearings, a gasket, and detailed instructions for installation.

Manufactured in the USA, the 583G Gear Drive Camshaft Kit may produce more valve train noise due to the inherent characteristics of gear drives. It is essential for the installer to check coil bind, valve-to-valve clearance, and valve-to-piston clearance. This kit is not recommended for engines with compression ratios greater than 10.1:1.

: 0925-0744
Out of Stock

Data sheet

Riding Style
Street
Type
Gear
Units
Kit
Application
Exhaust
Intake
Intake Lobe Centerline Imperial
96.5°
Exhaust Duration Imperial
262°
Intake Duration Imperial
203°
Exhaust Lobe Centerline Imperial
107°
Exhaust Lift Imperial
0.583"
Exhaust Open Imperial
58°
Exhaust Lift at TDC Imperial
0.206"
Intake Lift at TDC Imperial
0.113"
Intake Open Imperial
Exhaust Close Imperial
24°
Grind
583 Series
Intake Close Imperial
18°
Intake Lift Imperial
0.583"
